Brand Name : DELLOK
Model Number : Flat tube
Certification : CE. ISO,EN10204. 3.1 Cert.
Place of Origin : China
MOQ : N/A Contact us for details
Price : N/A Contact us for details
Payment Terms : L/C, T/T Contact us for details
Supply Ability : 60000 meters month
Delivery Time : EX-WORK within 4~5 weeks after order
Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap
OD : 6.00mm to 101.6mm
Type of Tubes : U-bend & Straight.
Destructive / Mechanical Testing : Tensile | Hardness | Flattening | Flare | Flange
Hydrostatic Testing : 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
WT : 0.5mm to 8mm
Payments : T/T,L/C
Pickled Bright Annealed SA213 Stainless Steel Seamless Tubes
Pickled / Bright Annealed Stainless Steel Seamless Tube , ASME SA213 TP316 / 316L
Specification:
ASME SA213/A213: Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A249 / A249M: Welded Austenitic Steel Boiler,Superheater Heat-Exchanger & Condenser Tubes.
More Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
Final Finishing
Solution Annealed & Pickled/Bright Annealed.
Type of Tubes:
U-bend & Straight.
American Standard |
Austenitic Steel: |
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
Russia Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Some of the quality tests carried out by us includes:
Corrosion Test | Conducted only when specially requested by the client |
Chemical Analysis | Test done as per required quality standards |
Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
Air Under Pressure Test | To check any evidence of air leakage |
Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
Our Service:
1. Inquiry-Professional quotation, or send inquiry item more details
2. Confirm the price, lead time, payment term etc
3. Proforma Invoice send or online
4. Make the samples according to your request, send you photos or samples, arrange the production
5. Send the production line photos Confirm the estimated delivery time again.
6. End Production-Mass production products photos and samples will send to you for approval.
7. Inform the tracking number and check the status for clients
8. Order can be say "finish" when you receive the goods and satisfy with them
9. Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
![]() |

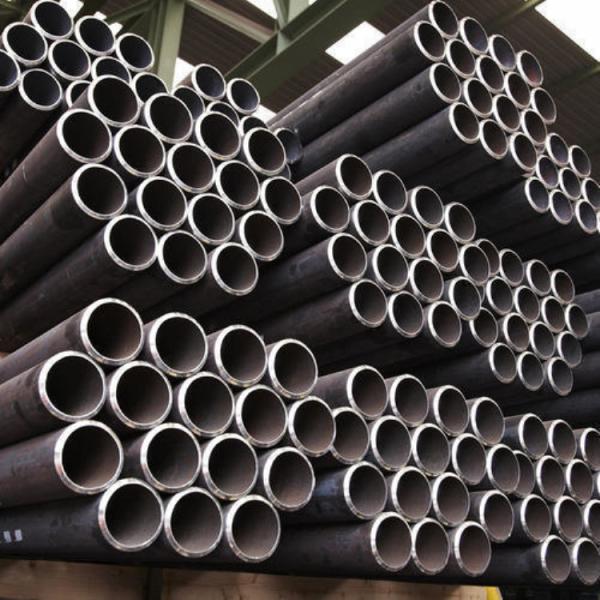

DELLOK Pickled Bright Annealed SA213 Stainless Steel Seamless Tubes Images |
